Feature Of Machine
# Mist spray metal cooling system for vacuum table metal work, Rotary device for cylinder materials, water tank for metal cooling water. # Rotary device for cylinder materials, pneumatic materials alignement and foot switch. # Rotary device is available for processing cylinder object, but at a very economical price. # High frequency water-cooling electronic spindle can let machine working in long time. # Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place. # Taiwan Original TBI ball screw for Z travel. # Taiwan HIWIN Linear guide,much more stable.Application
Applicable Materials: The Machine is suitable for working with materials such as: all kinds of woods, all kinds of plastics, composite, plywood, MDF, polystyrene, wax, PVC and many other materials. And it can also work with materials such as copper, brass, aluminum, etc. Applicable Areas: Manufacture of furniture (chairs, cabinets, door facades ...) Furniture covers and interior decor Advertising sphere (volume letters, emblems, logos ...) Cliche stamps, molds and much moreMain Configuration
| Descriptions | Parameters |
| Modle | UW-1325VR |
| Working area | 1300x2500x200mm |
| Machine size | 2000x3100mmx1700mm |
| Guide | Linear 20 square/Taiwan |
| Control System | DSP A11 |
| Table | Vacuum working table with 5.5kw pump |
| Spindle | Air cooling 4.5kw |
| Motor | Stepper Motor |
| Inverter | Inovance |
| Ball screw | Taiwan TBI ball screw |
| Rail | Taiwan HIWIN brand |
| Max.speed | 35000mm/min |
| Max cutting speed | 25000mm/min |
| Spindle speed | 18000/24,000RPM |
| Working voltage | AC380V/50-60Hz, 3-phase |
| Software | Artcam & Alphacam /UK |
| Packing dimension | 2280x3200x1800mm 1300kgs |
| Command code | G code |
| Rotary diameter | 200mm or customized |
Make product display
Main parts
Heavy duty body structure. Can effectively reduce the vibration caused by exercise, thereby improving accuracy.
HIWIN Square guide rail and TBI ball screw. More high accuracy and running stable Powerful Stepper motor Much more powerful and running quickly
Quality Leadshine driver Signal input is more stable, effectively reducing other signal interference
Import WMH rack pinion High-precision rack and pinion, running more smoothly
Fuling inverter The signal control is more stable, making the spindle run more smoothly Vacuum table with T slot table Easy fixed the materials not only can fixed by clamps ,but also can Use vacuum adsorption .

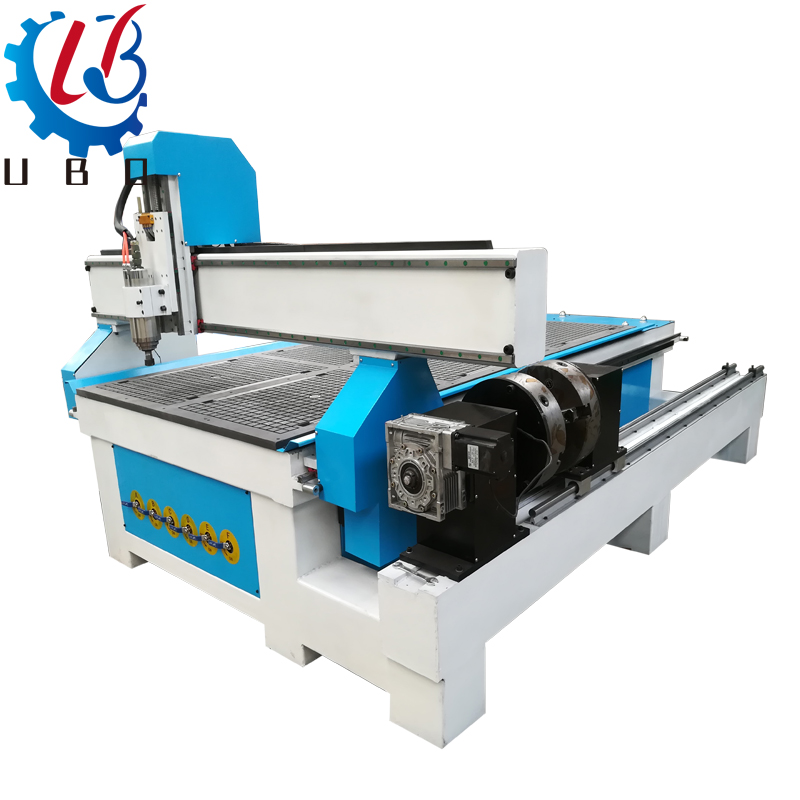

Ruizhi Auto DSP control system Off line control the machine ,can control the machine easily without computer Rotary device (for optional) Can can put the device on the table process on the cylinder and beam. when process on the cylinder ,then put on the table ,when process on the flat ,then remove it is ok. Very convenient and practical.
Powerful HQD 5.5kw Spindle More powerful to improve the efficient
Auto oiling system Automatically oiling for the guide rail and rack pinion Machine accessories
Packing and shipping
Our service
FAQ
One-piece tooth box Effectively reduce accuracy problems caused by assembly problems
