Feature Of Machine

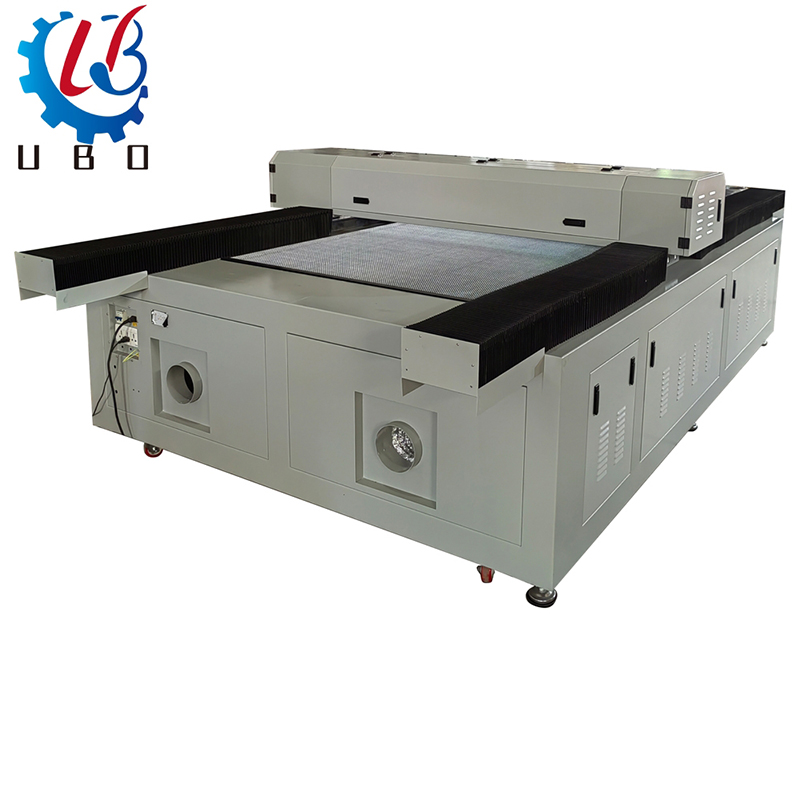

UBO Acrylic Laser Cutting Machine UC-1325 is one type of CNC Laser Machine which is designed mainly for engraving and cutting work on material such as Acrylic, clothes, Fabric, papers, wood. Machine normally equipped with 60-300W laser tubes.The honeycomb or blade type holding table easy for good for heat radiation, Water chiller keeps the laser tube at normal temperature. Dust collecting device could suck all the smoke away during work. Our Acrylic Laser Cutting Machine for could cut up to 25 mm thickness acrylic sheet into different shape as designing request. Meanwhile ,Machine table could built to be automatic up and down with a rotary clamp attached for the cylinder material. Except for Acrylic, our Acrylic CNC Laser Engraving and Cutting Machine UC-1390 is also could be used for non-metal cutting such as Leather, Rubber, Plastic, shoes, clothes etc .Application
1)Foam processing of automotive stamping dies, casting of wood molds, automotive interiors, engineering plastic materials, and various non-metal processing 2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows. 3) Wood mold processing center: Casting wood mold, automotive inspection tool processing, automotive interiors, engineering plastic materials and other non-metallic processing.Main Configuration
| Item | Parameter |
| Model | UC-1325 |
| Processing area | 1300mm*2500mm |
| Laser power | EFR /RECI 150W CO2 Source |
| Laser type | Sealed Co2 glass laser tube |
| Cooling mode | CW5200 Water cooling and protection system |
| Resetting positioning accuracy | ±0.05mm |
| Compatible Software | laser work CorelDraw, AutoCAD, Photoshop |
| Engraving speed | 1-10000mm/min |
| Cutting speed | 1-3000mm/min |
| Cutting thickness | 0-30 mm acrylic (others determined by materials) |
| Resolution ratio | ≤0.0125mm |
| Interface: | USB |
| Minimum shaping character | letter 0.8mm, Chinese 2mm |
| Controller | RD control system |
| Support graphic format | DST, PLT, BMP, DXF etc |
| Gross power | 1800W |
| Driving mode | DC0.8A 24V stepper motor |
| Cooling mode | Circulation water cooling |
| Working voltage | AC 220V±10%, 50 Hz |
| Operating temperature | 0-45C |
| Operating humidity | 5-95% |
| Driving system | stepper |
| Packing | wooden box |
| Guarantee time | 2 years, laser tube 10 months |
| Operation | Video to tell customer how to operate the machine |
| Net weight | 550KGS before package |
| Gross weight | 630KGS after package |
Main Components
Features
Application and industries
UC-1390 laser engraving machine is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products. The mechanical structure is strong and stable, making the machine to run at high precision. The electrical ability is stable, the engraving speed is high, and the precision is high.
The machine can engrave beautiful pictures, peoples’ photos on the surface of many materials of different size of materials (marble, black or colored acrylic etc). It can also engrave many signs, marks. It is a machine with high cost performance.
Service
1. Hermetic and Detached CO2 Glass Laser Tube
More than 10000h long lifetime,we can choose the suitable laser tube power according to different processing material thickness.
2. Honeycomb Working Table For Your Option
Especially for fabric engraving which can absorb the fabric firmly.
3. Thicken Strip Working Table For Your Option
Specially used for cutting and for heavy and hard products such as acrylic, PVC board cutting.
4. Customized Double Working Table
Design for your different material engraving and cutting requirements.
5. Taiwan Imported high precision Linear Guide Rail and Ball Screw Rod
High speed and accuracy with lower noise & long life span. Helps laser head move smoothly and laser beam reflect with high accuracy.
6. Water Chiller with Alarm Protection
CW-5200 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7.Reflector Mirror Holder
Focal length adjusting Parts easy to find the center of the lens and find the right focal distance.
materials:
Non-metal materials such as acrylic, double color board, Plexiglas, acrylic,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Thin Metal materials such as stainless steel, carbon steel
industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
6.1 Equipment installation and commissioning
6.11 UBOCNC will provide the user a CD to study the machine installation and commissioning. If you have any problem, please contact us by call or online at any time.
6.2 Training
6.21 Free of charge for customers with after-sales training.
6.22 Training people to have certain qualifications and relevant knowledge, the supplier will do training for programming, operations, processing and maintenance training, trainees should be fixed, and study hard.
6.3 After-sales service
6.31 Two years warranty,during warranty can be provide parts for free.
6.32 Engineers available to service machinery overseas.
6.33 Use online contact methods such as wechat/ teamviewer/skype/whatsapp etc to provide online services to customers.
Reference pictures
 | 1) RECI F8 150W CO2 Source Global Warranty |
| 2) Main electronic component in control box |  |
 | 3) Ruida control system |
| 4) Cooling system CW-5200 water chiller |  |
 | 5)Reflector and line |
| 6）laser head Fine cutting, precise, stable operation |  |
 | 7) Blade table |
| 8)High accuracy drivers and stepper motors |  |
 | 9)high powerful laser source Stable output, strong power Excellent quality, low failure rate |
| 10)high accuracy PMI Linear guide rail |  |
 | 11) Air pump |
| 12)550W exhaust fan, removes smoke and dust, protects optical parts and the users |  |
 | 13)Imported lens and mirrors |
| 14)out side plug and power switch |  |
 | 15)Name plate |
| 12) Tool box | |
